How to merge partitions in Windows Server 2003

When Windows Server 2003 system C drive is running out of space, you may either merge partitions or resize partitions. By merging two partitions (such as C: and D:) you get the free space of drive D: and entire disk space of the system C drive increased. Then how to merge the server 2003 partitions, here we go.

Step 1, open Server 2003 disk manage and check out the partition layout.

Disk management

There are 3 partitions in Disk 0, I want to merge partition C and D.

Launch partition assistant and you'll see the disk and partitions, layout is similar with Disk Management.

Main window

Step 2, right click partition D and select "Merge Partitions", or click this feature shortcut in left "Partition Operations" console.

Select merge feature

Step 3, in the pop-up window, select C: in the partition list, and then select C as target partition in the drop-down box.

Merge partitions

Click OK and back to main window, where you'll find that partition D merged into C drive and there is a pending operation created, to proceed partition merging, click "Apply" button on top left corner.

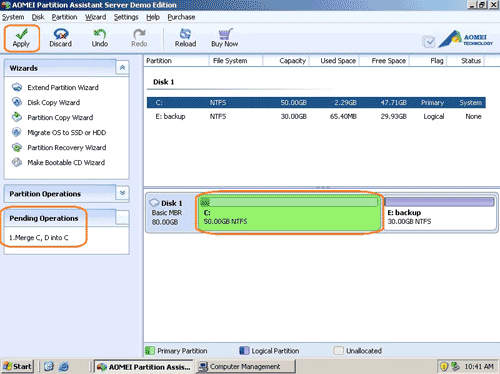

Preview

Very quickly, partition merging complete, check in disk management.

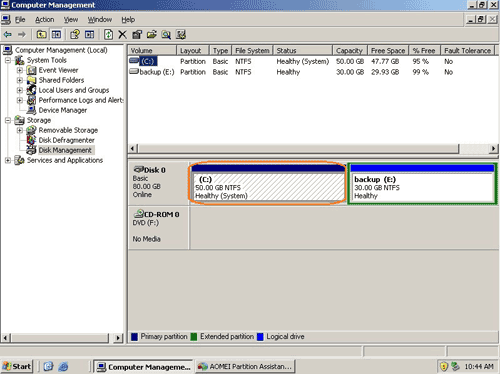

Partition merged

By merging partitions you can extend the server 2003 C drive, but you lost a partition, though all files exist in C drive. I suggest extend system C drive by resizing partitions, see how to resize Server 2003 partitions.

You can only merge two contiguous partitions in the same disk.
